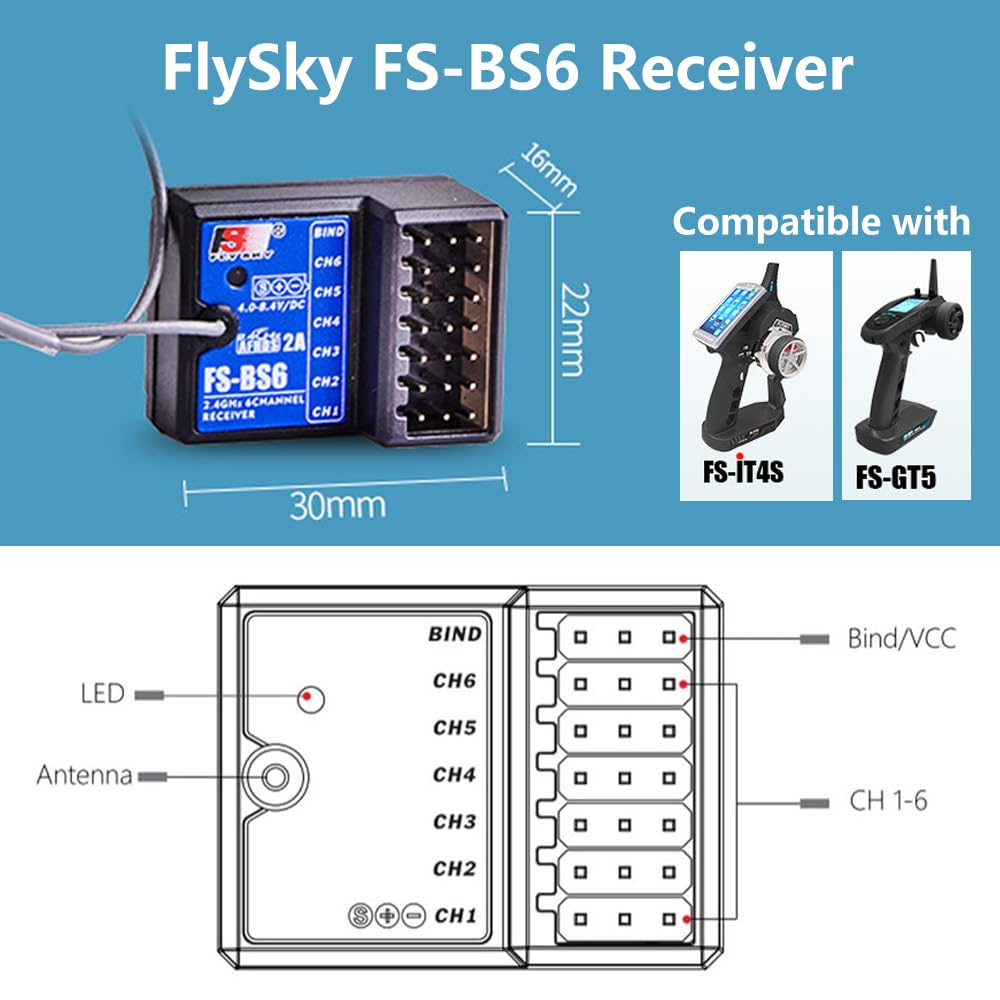

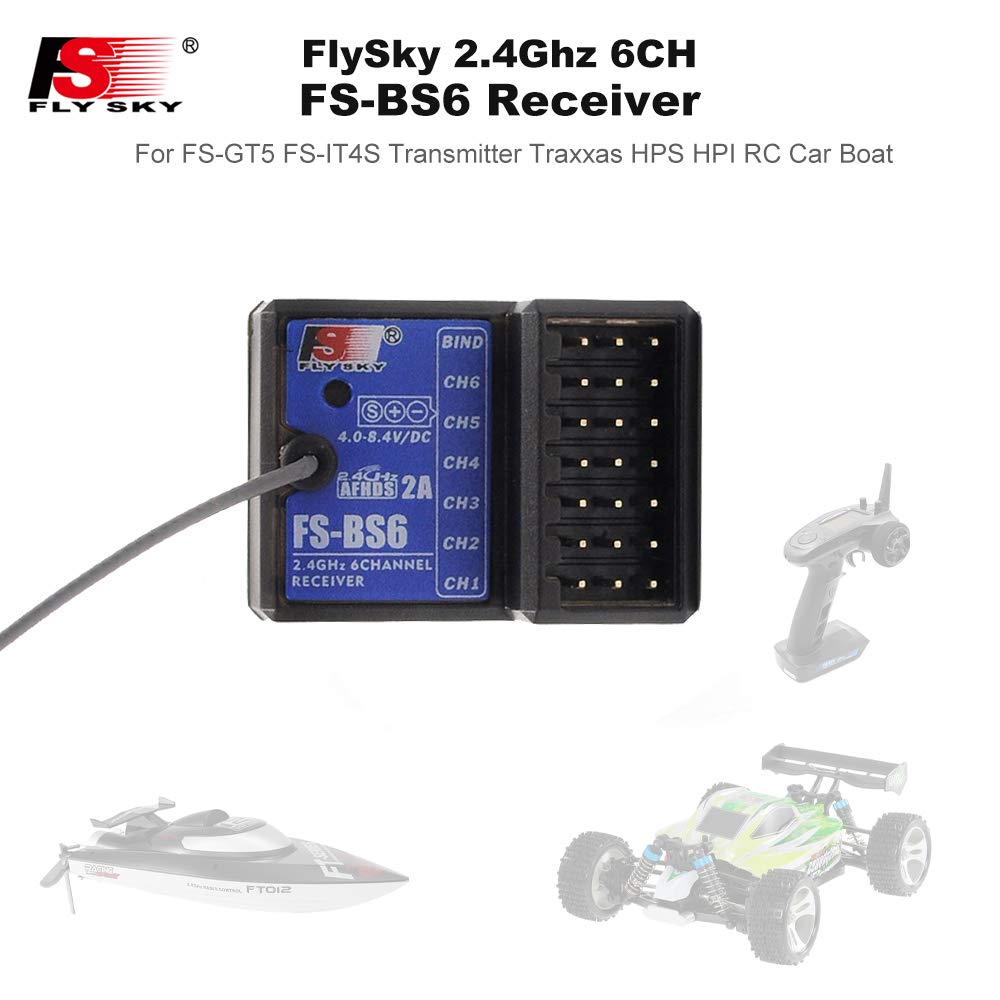

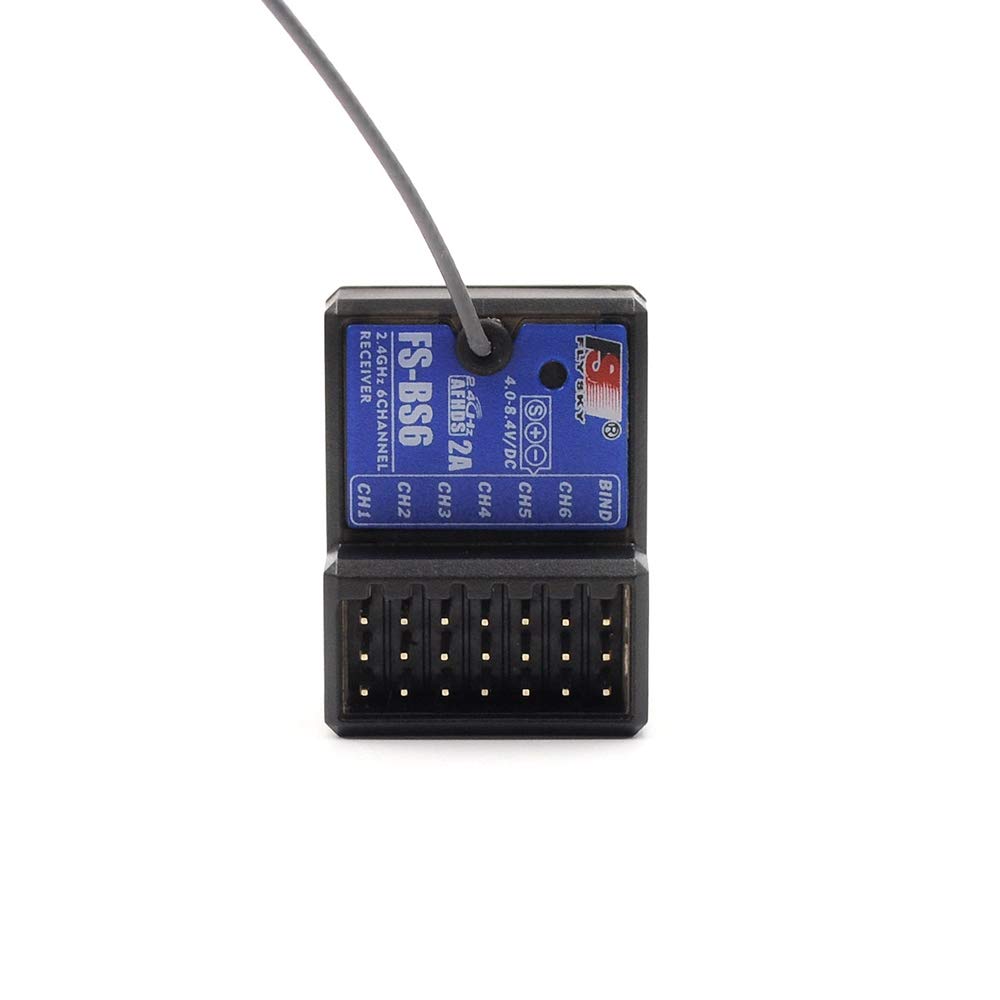

Goolsky Flysky FS-BS6 Receiver 2.4GHz 6CH AFHDS2 RC Receiver for RC Car Boat Flysky FS-BS6 is a 6 channel receiver based on AFHDS 2A protocol. This receiver is easy to bind and very fast link-up. Ultra-small size and ultra-light weight, buillt-in gyroscope features automatic recovery of unexpected offsets, suitable for AFHDS 2A system RC transmitter. Receiver Different Angles Display Receiver Size and Weight Receiver Size: About 30*22*16mm/1.18*0.87*0.63inchReceiver Weight: About 10g Easy to Bind Easy to bind and very fast link-up, quick and extremely stable in performance. Durable Metal Pin Heade Metal pin header to improve corrosion resistance and extend service life. Compact and Lightweight Ultra-small size and ultra-light weight, effectively save space and reduce item's weight-bearing. Status Indicator & Connectors Status Indicator The status indicator is used to indicate the power and working status of the receiver. Off: The power is not connected.Lit in Red: The receiver is on and working.Flashing Quickly: The receiver is binding.Flahing Slowly: The bound transmitter is off or signal is lost. Connectors Used to connect to the model and servos.The FS-BS6 rceiver has a gyroscope SVC function that can be used to improve handing. Gyroscope Calibration The gyroscope has been calibrated at the factory however if it needs to be recalibrated follow these steps: Calibration : Turn off the transmitter and insert power into channel 1 (Not the BIND port). The receivers LED should start to flash slowly.Place the receiver on a flat horizontal surface, make sure it can't move.Insert the bind cable into the bind port. The receivers LED should start to flash rapidly 3. times then return to the previous flash speed if the calibration has been successful. Connect the Receiver and the Servos as Left Side Indicated To ensure the gyroscope works as expected install the receiver horizontally at less that 10 degrees from level. Compatible and Application 2.4GHz 6 channel receiver is compatible with flysky FS-GT2E,FS-GT2G,FS-GT2F,FS-IT4S,FS-GT5,FS-i4X,FS-i6,FS-i6X,FS-i6S,FS-TH9A,FS-TM10,FS-i8,FS-i10 RC transmitter, suitable for remote control car and remote control boat.Model: FS-BS6Channels: 6 ChannelsWireless Frequency: 2.4GHz, Wireless Protocol: AFHDS 2AModel Type: RC Car BoatModulation Type: GFSKRF Receiver Sensitivity: -92dBmRemote Control Distance: 100 ~ 300m (ground)Antenna Type: Single Antenna (180m)Power Supply: 4.0-8.4V, RSSI: SupportedData Interface: PWMTemperature Range: -10℃ to +60℃, Humidity range: 20%-95%Online update: YesCertification: CE, RCM, FCC ID:N4ZBS600Package List:1* Flysky FS-BS6 Receiver, 1* Cable Flysky FS-BS6 Receiver Flysky FGr4S V2 Receiver Flysky FGr4 V2 Receiver Flysky FGr4D Receiver Flysky FS-GR3E Receiver Flysky FS-iA6B Receiver Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews 4.5 out of 5 stars 29 4.6 out of 5 stars 19 4.6 out of 5 stars 76 5.0 out of 5 stars 1 4.3 out of 5 stars 90 5.0 out of 5 stars 1 Price $19.49$19.49 $39.99$39.99 $37.99$37.99 $44.99$44.99 $14.09$14.09 — no data Compatible Transmitters Flysky FS-GT5 FS-iT4S RC Transmitter Flysky Noble NB4/PL18 RC Transmitter Flysky Noble NB4/PL18 RC Transmitter Flysky Noble NB4 PL18 EL18 RC Transmitter lysky FS-iT4S/FS-GT2/FS-GT2E/FS-GT2F/FS-GT2G/FS-GT2B/FS-GT3B/FS-GT3C RC Transmitter Flysky FS-NV14/FS-i10/FS-i8/FS-i6s/FS-i6x/FS-i6/FS-i4x/FS-th9x RC Transmitter Application Model RC Car/Boat RC Car/Boat RC Car/Boat RC Car/Boat RC Car/Boat RC Airplane/Glider/Helicopter Channel 6 Channels 4 Channels 4 Channels 4 Channels 3 Channels 6 Channels Wireless Frequency 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz Wireless Protocol AFHDS 2A AFHDS 3 AFHDS 3 AFHDS 3 AFHDS AFHDS 2A Range 100 ~ 300m (ground) > 200m (ground) > 300m (ground) > 200m (ground) 100 ~ 200m (ground) 500 ～ 1500m (in the air) Antenna Type Single Antenna (180mm) Built-in Single Antenna Single Antenna (150mm) Bulit-in Dual Antennas Built-in Single Antenna Single Antenna (150mm) Dual Copper Tube Antenna (150mm * 2) Power 4.0-8.4V 3.5-8.4V 3.5-12V 3.5~9V 4.0-6.5V 4.0-8.4V Data Port PWM PWM / PPM / i.bus / s.bus PWM / PPM / i.bus / s.bus PWM / PPM / i.bus 2/ i.bus / s.bus PWM PWM PPM / i.bus / s.bus Online Update Yes Yes Yes Yes No Yes
