35kg High Torque Coreless Motor RC Servo with Metal & Stainless Steel Gears - 180 Degree Digital Servo for Robotics, DIY RC Cars, Boats, and Industrial Automation Projects

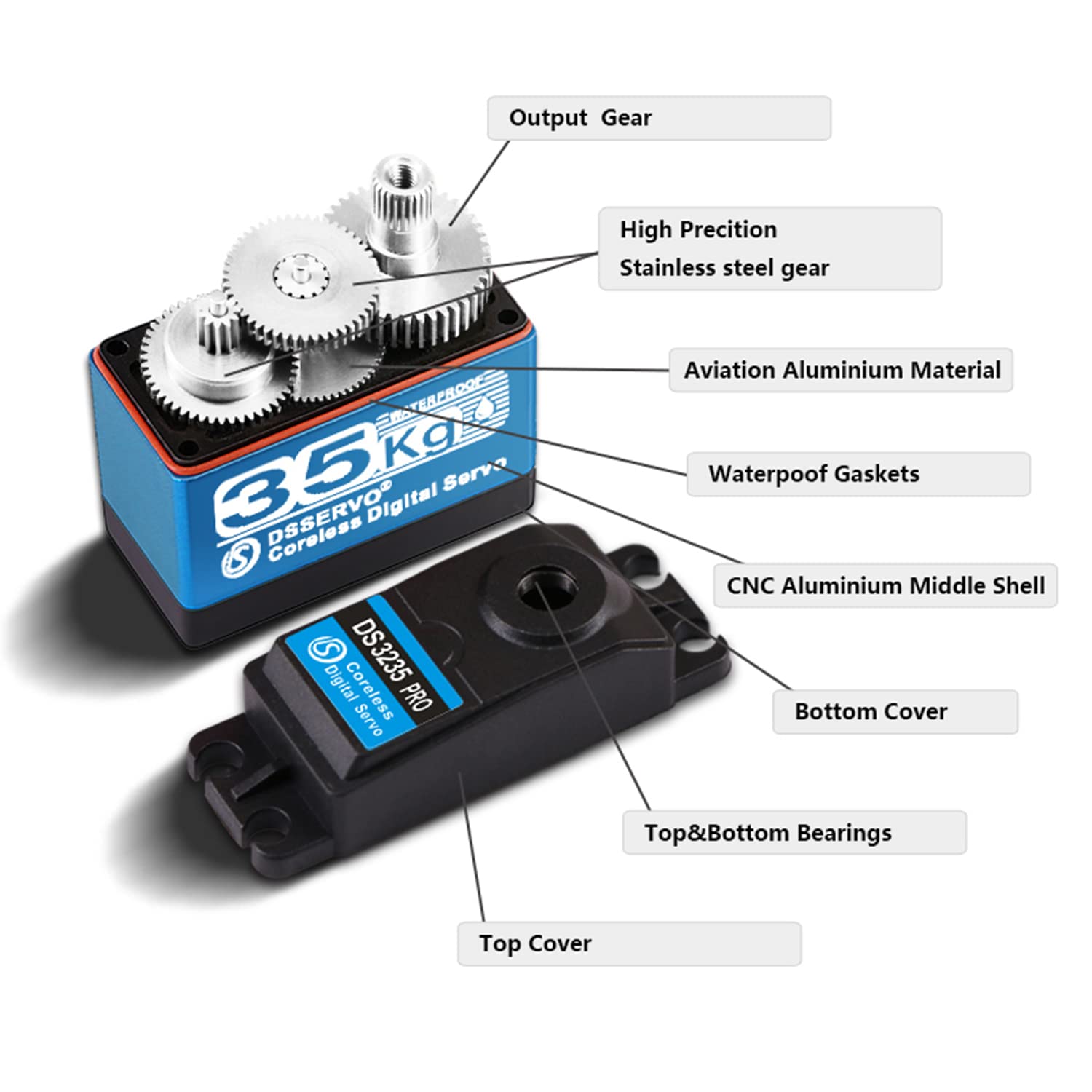

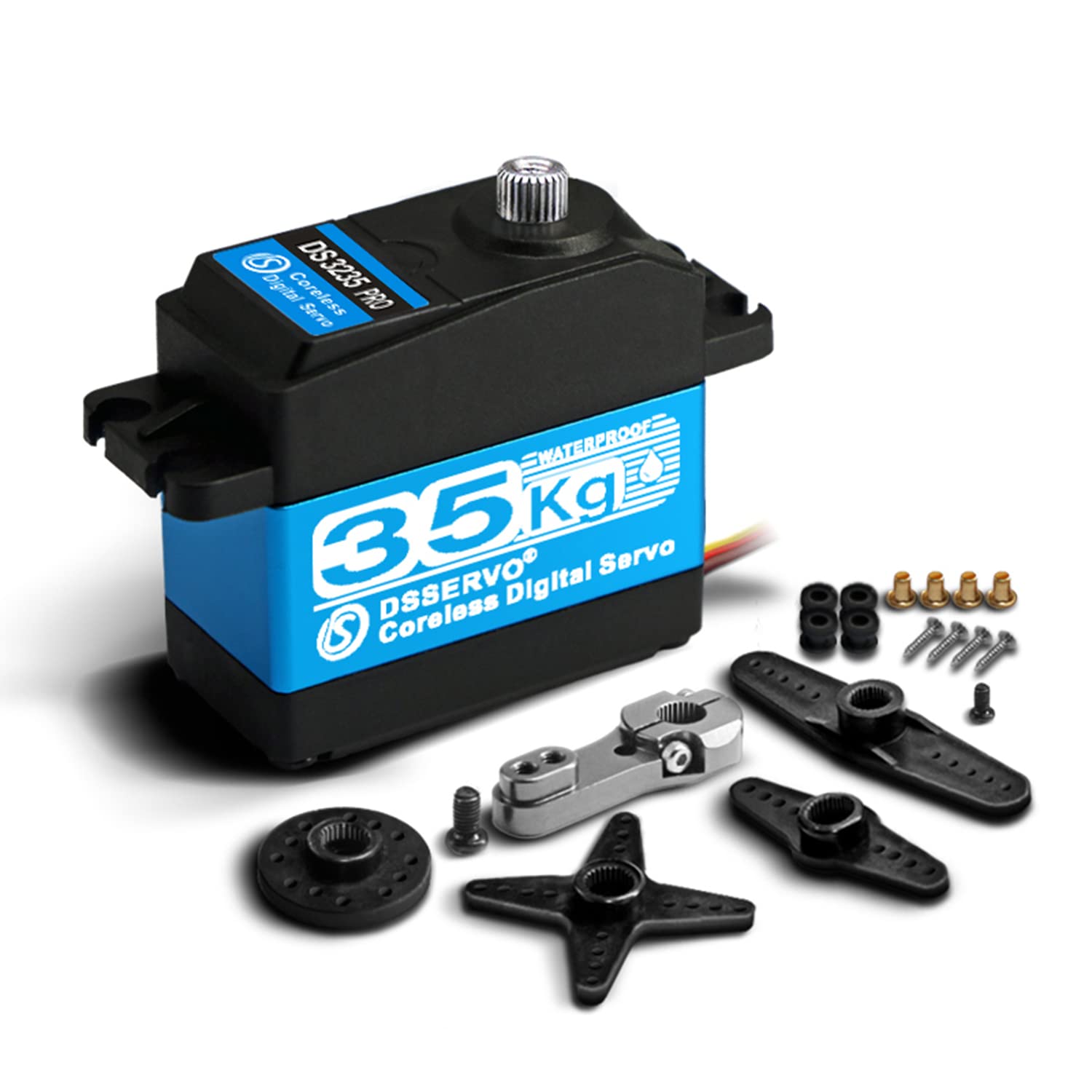

Torque :31kg.cm@5v, [email protected],[email protected] Speed:0.14sec/60°@5v,0.09sec/60°@74,0.08sec/60°@8.4 Waterproof :IP66 Features : Coreless High Speed and Torque,High Power Apply Environmental Conditon: 1.Storage Temperature Range:-30°C~80°C 2.Operating Temperature Range:-25°C~70°C Mechanical Specification: 1. Size: 40.0*20.5*40.5mm 2. Weight: 58g±2g 3. Limit angle: 360° 4.Bearing: 2BB 5.Horn gear spline: 25T Diameter:5.9mm 6.Case : Engineering plastics+Aluminum alloy 7.Connector wire: 320mm±5mm 8.Motor: Coreless brush motor Electrical Specification: 1.Working voltage range: 5 - 8.4V 2.Command signal: Pulse width modification 3.Amplifier type: Digital controller 4.Pulse width range: 500～2500usec 5.Neutral position: 1500usec 6.Running degree: 180±3°(PWM 500～2500usec) 7.Dead band width: 3 usec 8.Rotating direction Counterclockwise: (when 1000～2000usec) Packing List: 1x 35kg PRO digital servo 1x 25T adjustable metal servo arm 1x accessory bag

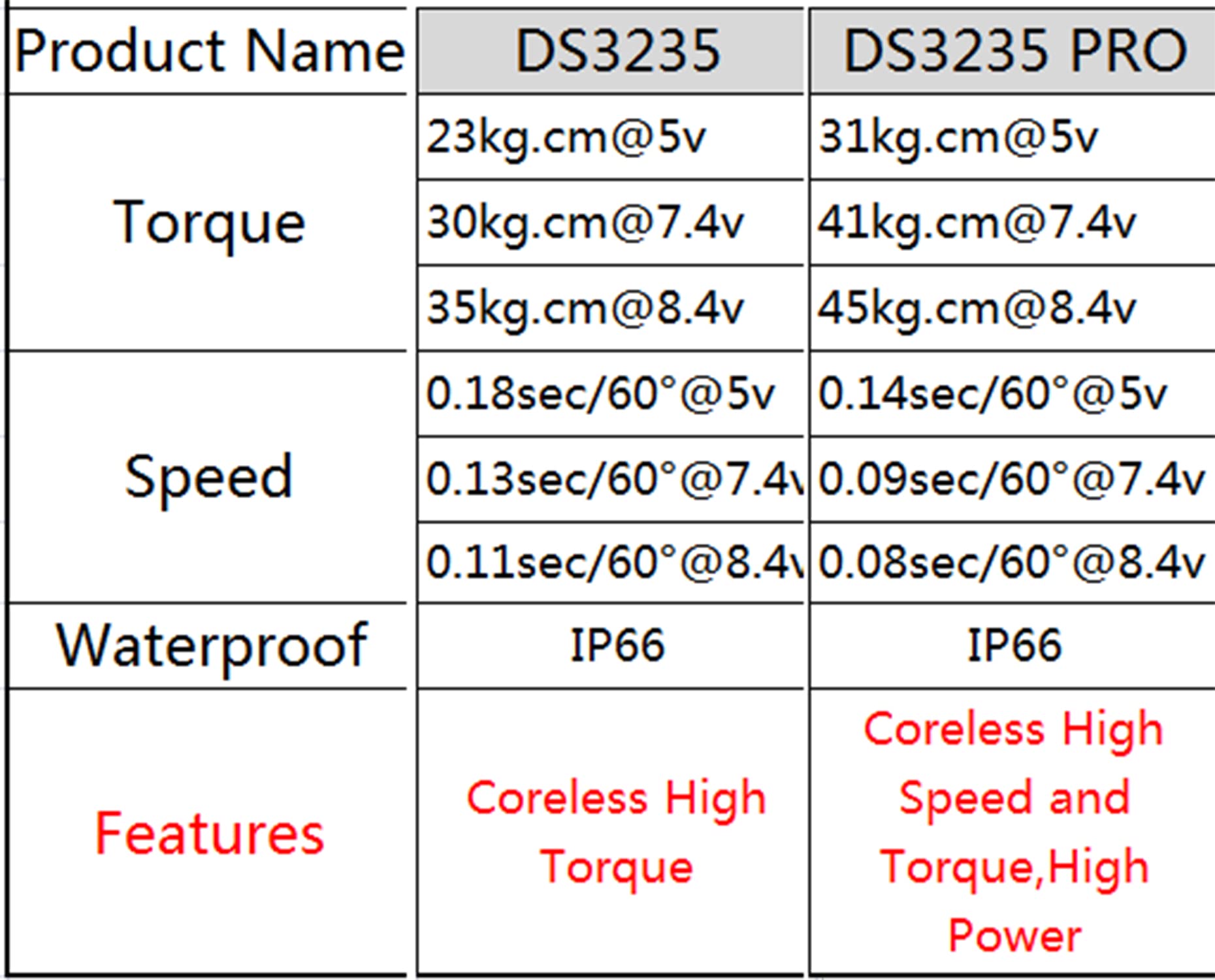

35KG Pro servo great upgrade Coreless High Speed and Torque45kg.cm,0.08sec/60°@8.4

Servo application scope1/8, 1/10, 1/12 Truck, RC Car / Robot / Boat.

Standard size 1.58x0.79x1.60inch (40x20x40.5mm) Weight60 g (2.12 oz).

High Torque Coreless gear, Less noise, light weight, Running degree 180±3°(PWM 500～2500usec)

DIY digital Servo for software for robot parts, RC Helicopters, small robots, and other models Such as mechanical arm
