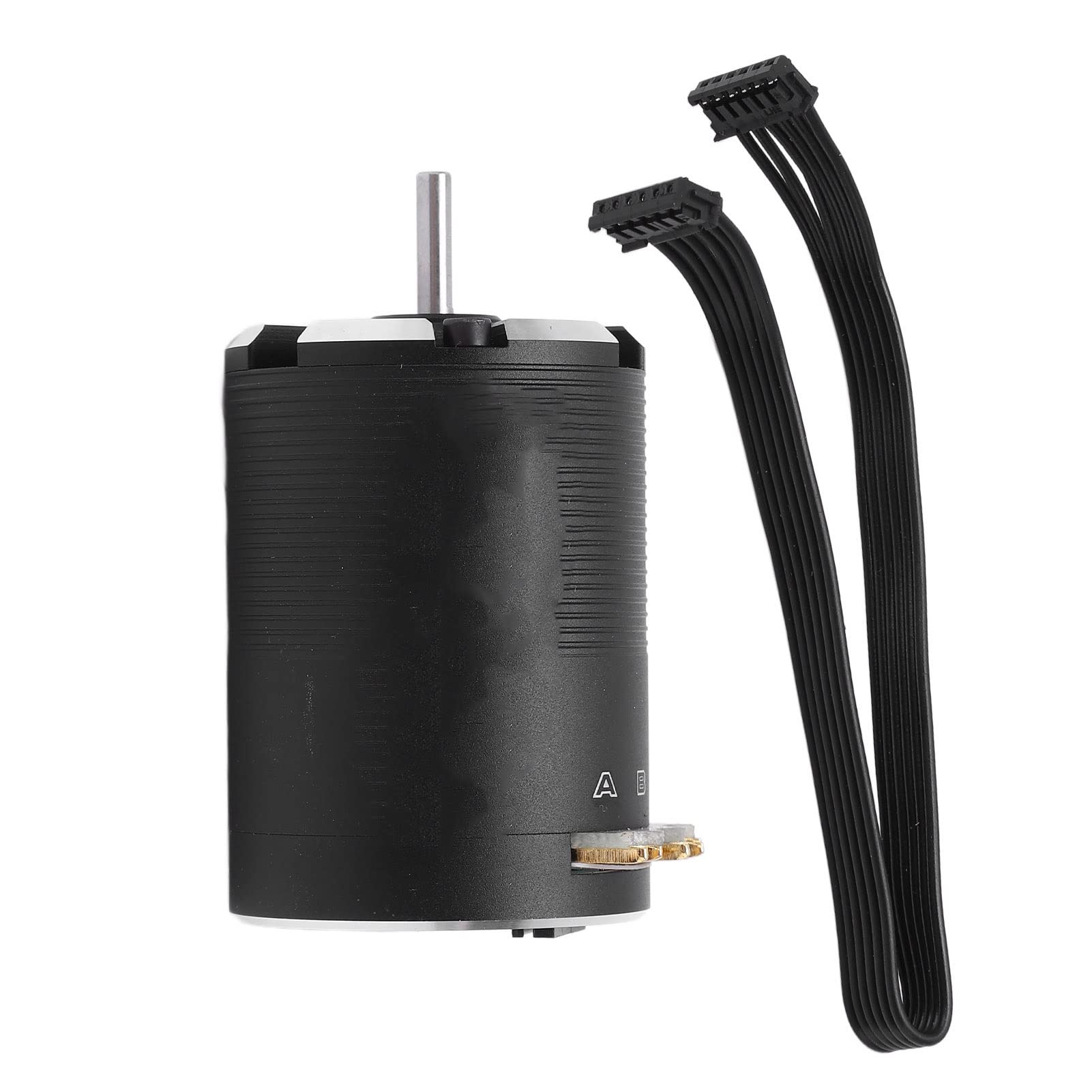

VGEBY 540 Sensored Brushless Motor - 10.5T High Performance RC Motor for 1/10 Scale Racing Cars & Trucks | Black Supersonic Brushless Motor for Competitive RC Racing & Off-Road Bashing

How to Use: Install and Connect: 1. The mounting screw holes of the motor are 6 M3 screws, the mounting hole spacing is 16 and 19mm, and the panel screw holes can be locked into the depth of 5mm, so it is recommended to use M3 screws no longer than 8mm for installation. The specific installation situation can be determined according to the frame. 2. Three connecting wires need to be welded to connect the motor. There is no fixed color distinction or no color distinction between the three connecting wires. Please pay attention to the following two points when installing and connecting: Specification: Item Type: 540 Sensored Brushless Motor Model: 540 Type: Modified Material: Aluminum Alloy, Copper Color: Black Weight: Approx. 196g / 6.9oz KV(RPM Volt): 3500KV Output Power: 250W General Lithium Battery: 1-3S Maximum Current: 63A Number of Motor Poles: 2 No Load Current: 7.4V, 4.0A Resistance (Ω): 15.84 Motor T Number: 10.5T Motor Diameter: Approx. 36mm / 1.4in Motor Length: Approx. 50mm / 2.0in (without shaft) Shaft Diameter: Approx. 3.175mm / 0.1in Shaft Length: Approx. 12.8mm / 0.5in Rotor Size: Approx. 12.3x5x24.5mm / 0.5x0.2x1.0in Application: Suitable for 1/10 Remote Control Car Package List: 1 x 540 Sensored Brushless Motor 1 x Induction Wire 1 x Manual Note: 1. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

【Copper Windings and Motor Performance】 : High purity copper windings maximize conductivity. Sensored brushless motor has strong torque and stable output power

【Aluminum Radiator Tank】: Sensored brushless motor adopts CNC machining billet T6 aluminum water tank, high temperature resistant copper coil, and the shell can effectively protect the internal parts

【Good Performance】: Explosion proof rotor, high toughness stainless steel output shaft, and high speed accuracy bearings make the motor super durable

【Scope of Application】: Smoother is better for better reliability and maximum revs. 540 10.5T sensored brushless motor is compatible with any sensor and sensorless ESC

【Detachable and Replaceable Rotor】: High power solder tabs ABC wiring, detachable and replaceable rotor design, easy to clean and maintain, effectively extending motor life
